Incoloy 825 Metal Material Analysis Solution

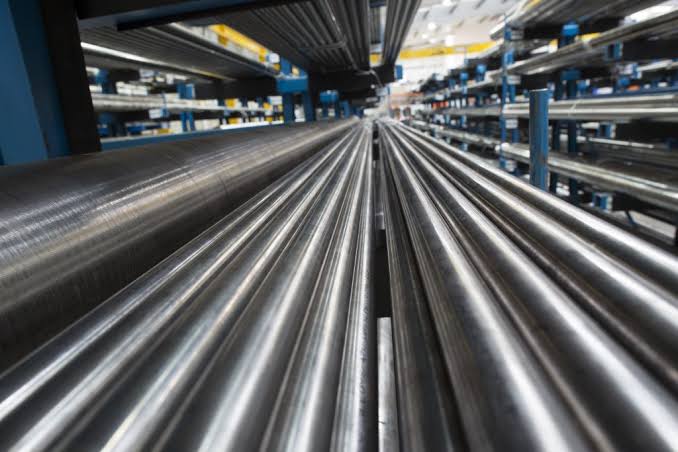

What is Incoloy 825?

Incoloy 825 is a high-performance nickel-iron-chromium superalloy specifically engineered to offer excellent corrosion resistance in both oxidizing and reducing chemical environments. Developed to withstand highly corrosive acidic conditions, it serves as a cost-effective and efficient alternative to stainless steel.

Common Applications of Incoloy 825

Downhole oil and gas tubing

Pickling equipment

Chemical process heat exchangers

Phosphoric acid production

Nuclear fuel reprocessing

Flue gas desulfurization scrubbers

Offshore pipeline systems

Food and beverage processing

Radioactive waste treatment

Ammonium sulfate production

Industry Testing Challenges: Long-standing Difficulties in Incoloy 825 Analysis

Incoloy 825 is a complex nickel-iron-chromium austenitic alloy that relies on the synergistic effects of five key elements—Ni, Cr, Mo, Cu, and Ti—to achieve resistance against acids, alkalis, and chloride corrosion. Its composition must be tightly controlled within strict ranges: Ni 38.0%–46.0%, Cr 19.5%–23.5%, Mo 2.5%–3.5%, Cu 1.5%–3.0%, Ti 0.6%–1.2%, with carbon strictly limited to ≤0.05% and extremely low impurity limits for S and P. Traditional PMT and conventional CMOS spectrometers commonly face four major shortcomings in testing:

1. Severe spectral line overlap interference: High concentrations of Ni and Cr in the matrix interfere with characteristic lines of Cu, Ti, and Mo, causing significant fluctuations in titanium data, making it the biggest bottleneck for 825 detection;

2. Unstable ultraviolet trace element analysis: C, S, and P require deep-ultraviolet wavelength collection, but standard detectors lack sufficient UV sensitivity, resulting in poor data repeatability;

3. Difficult matrix effect correction: Mutual absorption among multiple elements such as nickel, iron, and chromium is enhanced, and without full-spectrum correction capability, overall composition drift is prone to occur;

4. Complicated on-site quality control: Frequent drift calibration is required, leading to low efficiency in detecting large volumes of pipes, welded tubes, and flanges, making it difficult to meet the demands of bulk export inspections.

Numerous chemical, piping, and foreign trade companies have reported that deviations in titanium content of Incoloy 825 directly affect its resistance to intergranular corrosion during welding, while insufficient molybdenum and copper levels can lead to premature corrosion failure under desulfurization and sulfuric acid conditions, placing extremely high demands on the resolution and long-term stability of spectroscopic equipment.

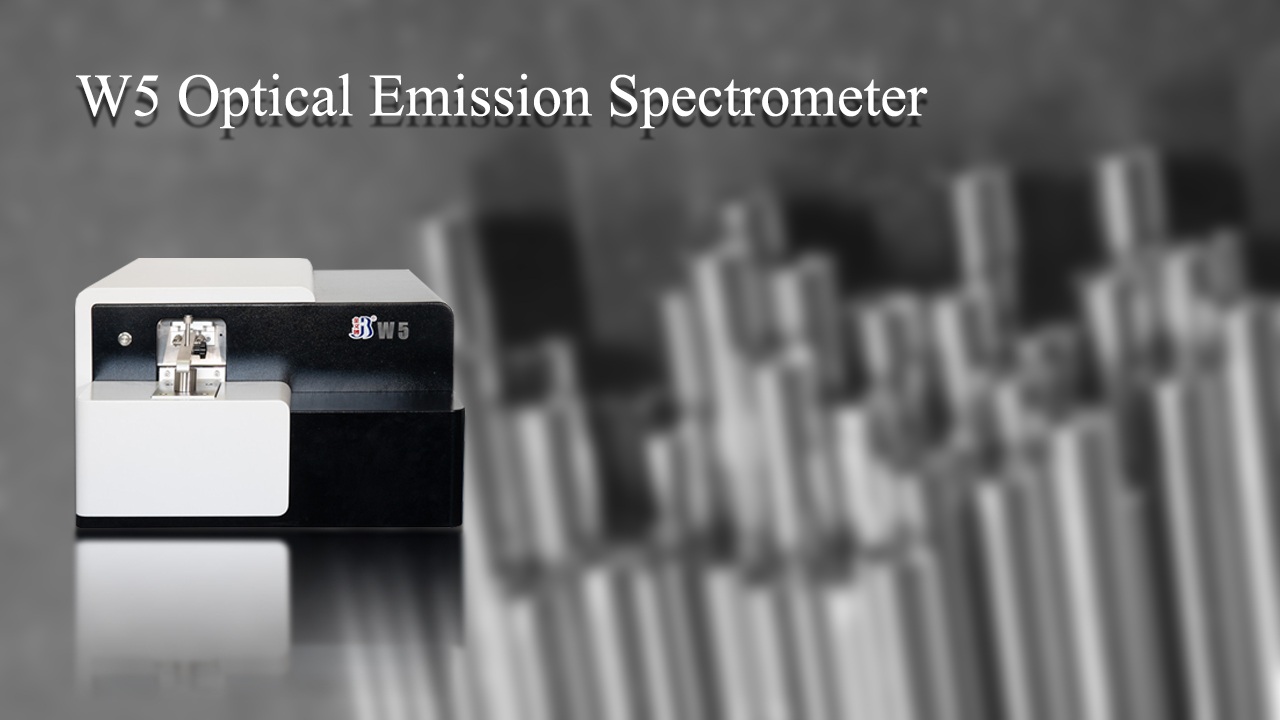

W5 Metal Analyzer Application Solution for Incoloy 825 Material

We offer a complete standardized testing process for all types of Incoloy 825 products, including seamless and welded steel tubes, plates, bars, and forgings. The W5 Metal Analyzer is equipped with dedicated nickel-based alloy calibration curves and a specialized Incoloy 825 control sample. It fully complies with multiple international standards such as UNS N08825, W.Nr. 2.4858, and NS1402, meeting global customers' requirements for quality inspection and export certification.

The W5 Metal Analyzer efficiently meets the material inspection, finished product delivery testing, and third-party commodity inspection needs of nickel-based alloy manufacturers and engineering equipment companies.

FAQ

Q1: Why is accurate Titanium (Ti) detection so crucial for Incoloy 825, and how does the analyzer overcome line interference?

A: In Incoloy 825, Titanium (0.6%–1.2%) serves as a stabilizing element. It preferentially combines with carbon and nitrogen to form TiC / TiN precipitates. This suppresses chromium-carbide precipitation at grain boundaries during welding-related sensitization, mitigating the risk of intergranular corrosion. High concentrations of nickel and chromium produce severe spectral-line overlap on titanium’s characteristic emission wavelengths, leading to unstable and inconsistent Ti results on conventional optical emission spectrometers. The W5 Metal Analyzer adopts high-resolution full-spectrum optics together with advanced spectral-interference deconvolution algorithms to resolve Ni- and Cr-spectral overlaps, delivering accurate and repeatable titanium measurements.

Q2: How does the W5 Metal Analyzer ensure reliable measurement of trace carbon (C ≤0.05%), sulfur, and phosphorus in high-nickel matrices?

A: Trace-level carbon, sulfur and phosphorus are measured in the deep-ultraviolet (DUV) spectral range. In this region, atmospheric oxygen absorbs optical signals, and conventional detectors suffer from insufficient sensitivity. The W5 Metal Analyzer is built with UV-optimized optical components featuring high deep-UV sensitivity and an efficient argon-purged optical path, enabling full-spectrum acquisition down to deep-UV wavelengths. Combined with dedicated nickel-base calibration curves and certified reference materials including Incoloy-825 grade control samples, the instrument maintains high signal-to-noise ratio and long-term measurement repeatability for low-level impurities, given proper sample preparation.

Please contact us for further inquiries or detailed information!
